Product Overview

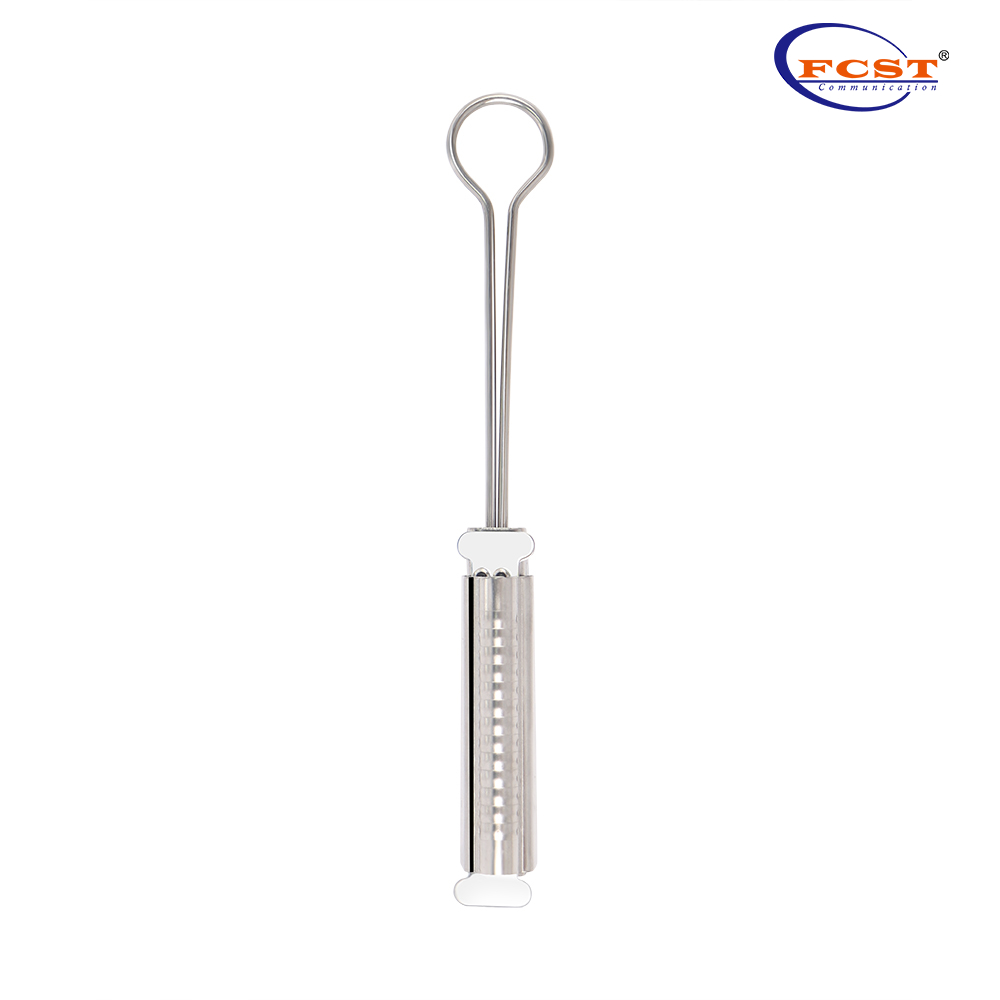

FCST601134 Round Cable Clamp is a type of wire clamp, which is widely used to support telephone drop wire at span clamps, drive hooks and various drop attachments. It is designed to round FTTH drop cable in FTTX or fiber optic to home construction. The unique design allows the anchoring of the cable on the end support without any radial pressure on the cable and fiber and provides additional protection for the FTTH cable.
Product Advantages
l Good anti-corrosion performance.
l Abrasion and wear resistant.
l Easy installation.
l The serrated shim increases the adhesion of stainless steel wire clamp on cables and wires.
l The dimpled shims protect cable jacket from being damaged.
Product Specifications
Construction | Description |
Cable Type | Round Cable |
Material | SUS201/SUS304 |
Dimension (mm) | 192.2*15*16 |
Cable Diameter（mm） | Φ5 |
Max Span（m） | 50 |
Net Weight（g） | 50 |
Salt Spray Test(h) | 1000 |
Product Installation
Packing Information
Construction | Description |
Outside Dimension（L*M*H）mm | - |
Weight/PC（kgs） | - |
Carton size（L*W*H）mm | 380*260*300 |
Qty/CTN（pcs） | 500 |
Weight/CTN（kgs） | 23.5 |
