FCST080903
FCST
Product Overview

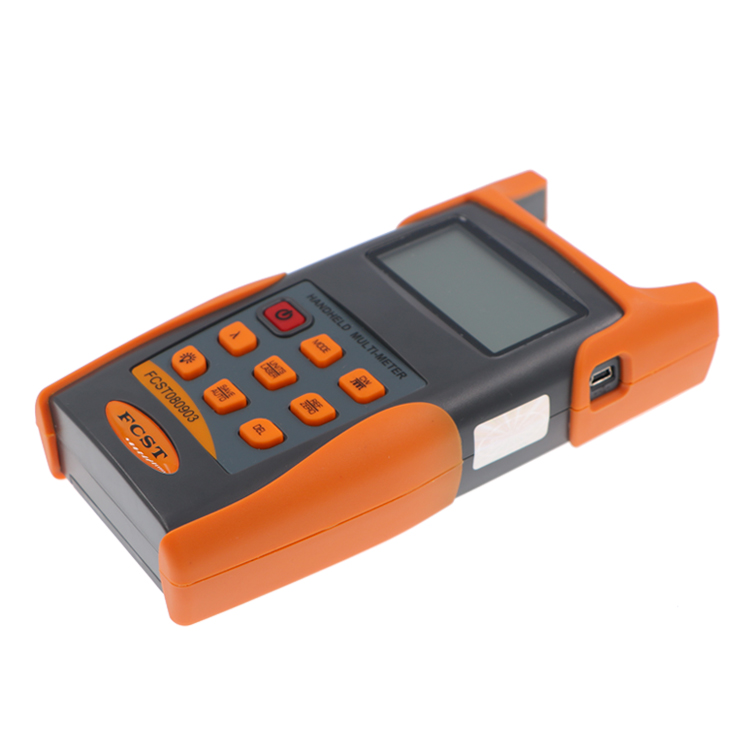

FCST080903 Handheld Optical Multi-meter Integrates the functions of an intelligent optical power meter module and of a highly stable light source module in one unit. It can also provide data storage and upload functions. It is widely used in installation, measurement and maintenance of DDN, Telecom and CATV networks.
Product Advantages
lFrequency identification.
lSimple function mode switching.
lHigh stability of the output power.
lData storage function, up to 1000 test records.
lAutomatic wavelength of light source switching.
lAlkaline Battery and Mini USB Adapter for power supply.
lUSB communication port for saved testing records download.
lUsers could write their own software by the communication protocol provided.
Product Applications
lTelecom Maintenance.
lCATV Maintenance.
lDDN Maintenance.
lFiber Optic lab testing.
lOther Fiber Optic Measurements.
Product Specifications
Model | FCST080903A | FCST080903C |
Optical Power Meter Module | ||
Detector Type | InGaAs | |
Measurement Range（dBm） | -70～+6 | -50～+26 |
Rosolution(dB) | 0.01 | |
Uncertainty | ≤±0.25 | |
linearity (dB) | ≤±0.1 | |
Frequency ID Range（Hz） | ＜10K | |
Optical Light Source Module | ||
Wavelengths(nm) | 1310/1550(other wavelengths can be optional) | |
Typical Ouput Power(dBm) | -5 | |
Output Stability (dB,30min,20℃) | ≤0.1 | |
Modulation Frequencies(Hz) | CW,270,1K,2K | |
General Specifications Of Multi Meter | ||
Power Supply | 3 pcs 1.5V Alkaline Batteries/Mini USB 5V Adapter | |
Battery Operating Time(h) | ≥50 (Both Power Meter and Light Source are working) ≥200(Only Power Meter is working) | |
Auto-off time (min) | 10 | |
Communication Port | Mini USB | |
Operating Temperature(℃) | -10~+60 | |
Storage Temperature(℃) | -25~+70 | |
Dimension(mm) | 175X90X44.5 | |
Weight (g,without batteries) | 265 | |
Standard Packages
Model | Includes |
All FCST080903 Models | FCST080903 Handheld Optical Multi-meter, Mini USB cable,5V USB Adapter,CD,User Manual, Cotton swabs and Soft carrying case. |
