Product Overview

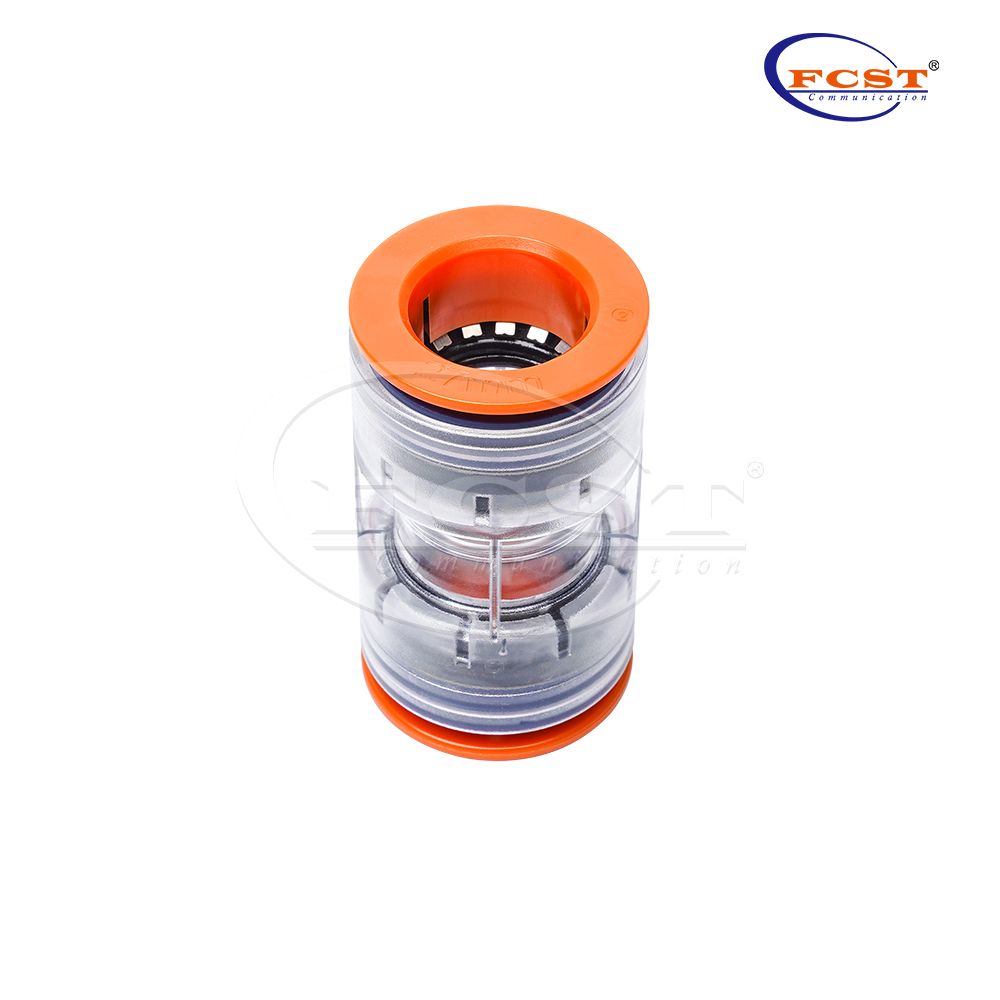

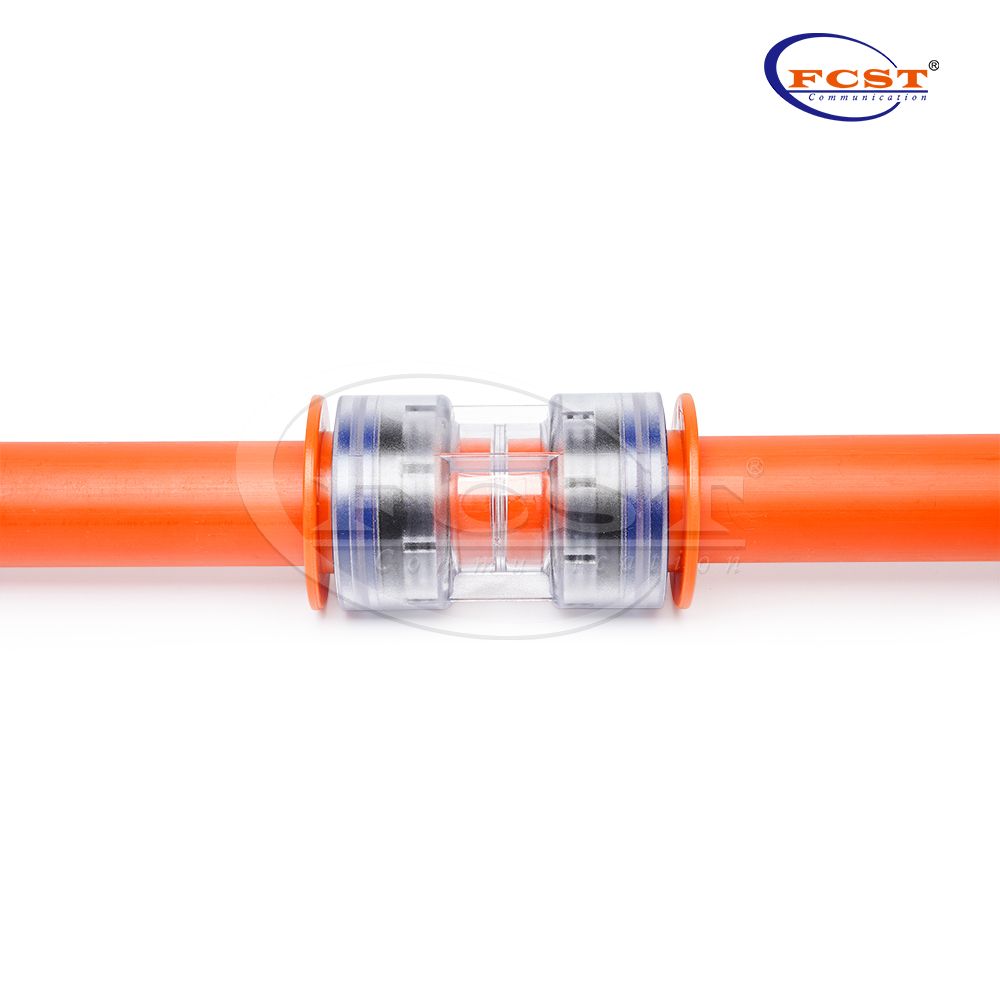

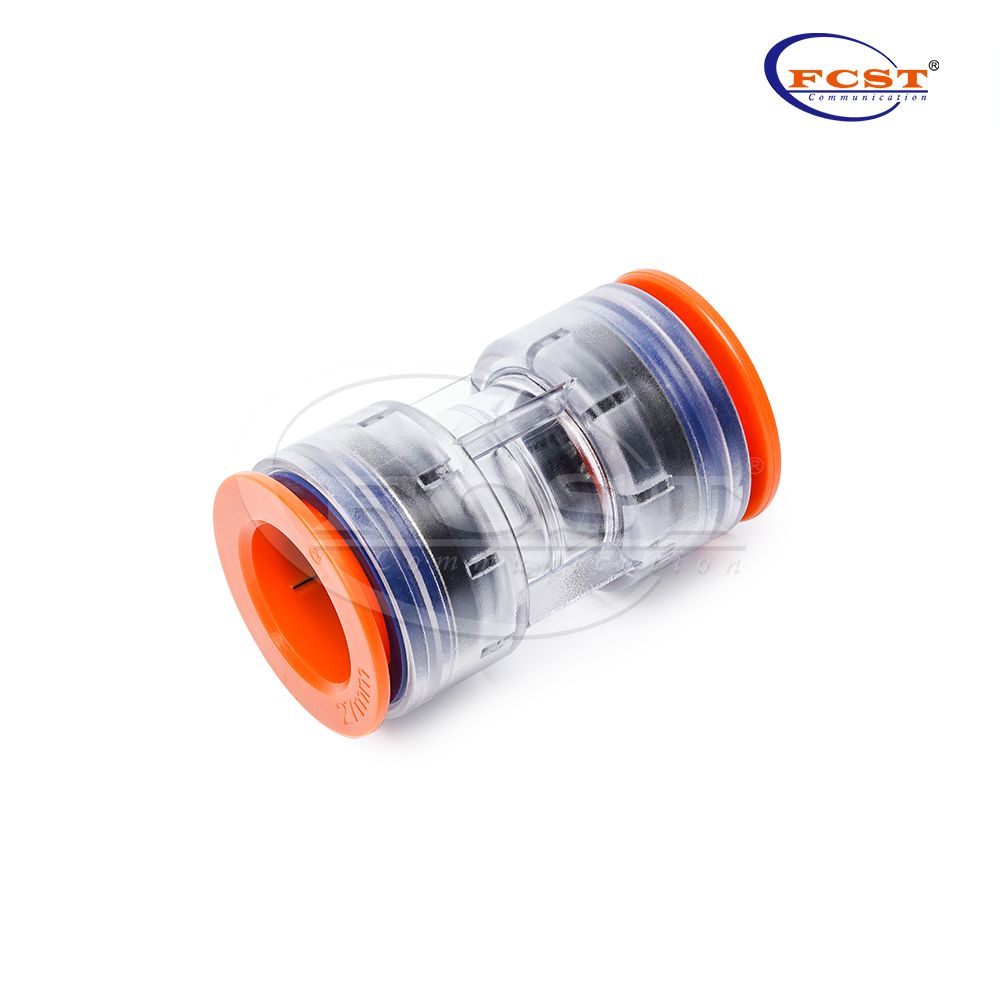

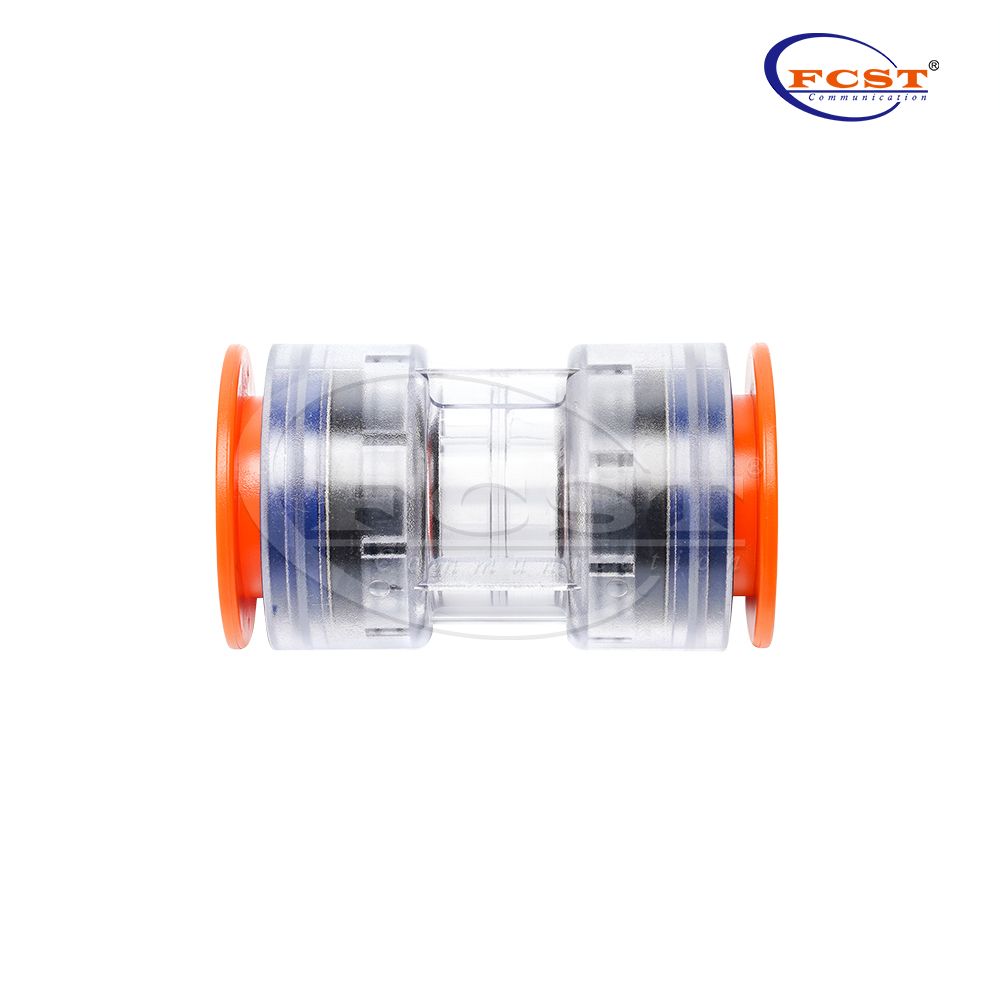

27mm Microduct Straight Connector were developed to connect microducts with each other.Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces,allowing them to be used in direct buried (DB) applications. The transparent body enables easy visual inspection of the cable with in the connector.
Product Advantages
- For 27 mm Microducts.
- Easy “push-in” installation.
- Crystal clear transparent body.
- 95% of the material is made of non-metal.
- Tested in accordance to EN 50411-2-8:2009.
- Reinforced design. It can meet the DB applications.
- Locking rings to prevent accidental removal of connector.
Product Specifications
Construction | Description |
Microduct to connect | Polyethylene HDPE |
Fluid | Air with blowing system |
Working Pressure | 25 bar |
High Pressure Resistance(safety) | >50bar |
Userful Life | 25 years |
Working Temperature | -45℃/+50℃ |
Transport And Storage Temperature | -10℃/+50℃ |
Installation Temperature | -10℃/+50℃ |
Recommended Blowing Temperature | -15℃/+35℃ |
Protection Class | IP68 |
According To Standards | DIN EN 50411-2-8, Rohs Reach |

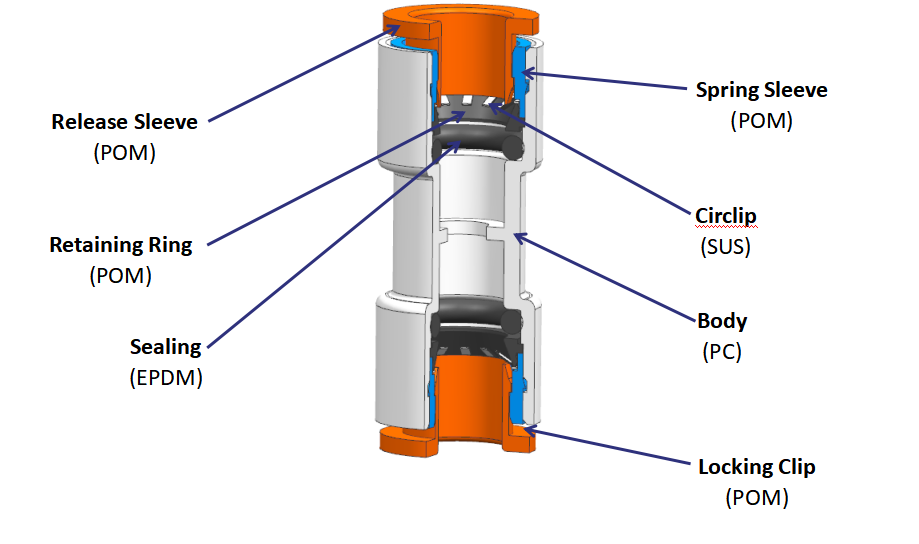

Product Material
